Customizable Aluminum Roller Shutter Door with Heat Insulation and Weather Resistant Features

Detalhes do produto

Certificação: CCC, ISO9001, CE

Termos do pagamento & do transporte

Quantidade de ordem mínima: 50

Preço: 53.5

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Customizable Aluminum Roller Shutter Door, Heat Insulation Rolling Shutter Door, Weather Resistant Security Roll up Shutter Door


Modelo No.:	SAI77	Material:	Liga de alumínio
Tipo:	rolando	Estilo aberto:	rolando
Tipo de abertura:	Com controle remoto	Largura da veneziana:	65 mm
Espessura de ripas:	1,2 mm	Tamanho do carril de guia:	8036mm ou 9036mm
Capacidade do motor:	400kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg	Tensão do motor:	220V/50Hz, 380V/50Hz, 110V/60Hz
Torque do motor tubular:	60n, 80n, 120n, 140n, 230n, 300n	Diâmetro do eixo:	3 polegadas, 5 polegadas, 6 polegadas, 8 polegadas, 10 polegadas
Acabamento superficial:	Finalizado	Capacidade de produção:	5000 metros quadrados/ mês
Cor de laje:	branco, bege, feito sob medida

Modelo No.:	SAI77
Material:	Liga de alumínio
Tipo:	rolando
Estilo aberto:	rolando
Tipo de abertura:	Com controle remoto
Largura da veneziana:	65 mm
Espessura de ripas:	1,2 mm
Tamanho do carril de guia:	8036mm ou 9036mm
Capacidade do motor:	400kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg
Tensão do motor:	220V/50Hz, 380V/50Hz, 110V/60Hz
Torque do motor tubular:	60n, 80n, 120n, 140n, 230n, 300n
Diâmetro do eixo:	3 polegadas, 5 polegadas, 6 polegadas, 8 polegadas, 10 polegadas
Acabamento superficial:	Finalizado
Capacidade de produção:	5000 metros quadrados/ mês
Cor de laje:	branco, bege, feito sob medida

Descrição

Customizable Aluminum Roller Shutter Door with Heat Insulation and Weather Resistant Features

Insulated Aluminum Rolling Shutter Door / Security Roll Up Shutter Door

Warehouse Aluminum Alloy Shutter Door

High-quality insulated aluminum rolling shutter doors designed for security, weather resistance, and thermal insulation.

Applications

Ideal solution for various commercial and industrial applications:

Commercial shops
Factories
Warehouses
Residential garages
Club bars

Key Features

Safety and security
Theftproof design
Heat insulation
Weather resistant
Rustproof construction
Sound insulation

Technical Specifications

Item Name	Specifications

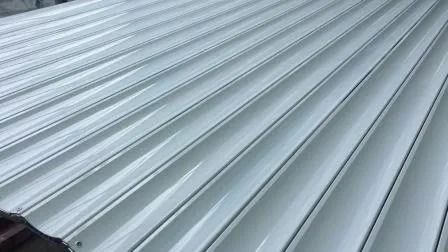

Slat	Width: 65mm Thickness: 1.2mm Color: white, beige, custom-made colors
Aluminum Bottom Rail	Made of extruded aluminum
Aluminum Guide Rail	Heavy duty extruded aluminum "U" guide rail (8036mm or 9036mm) Includes brush strip for quiet operation
Switch Button	Stainless steel cover box
Endless Chain	Manual operation option when power is off
Rolling Shutter Motor	Option 1: HOFUL brand side motor (CE certified) Capacities: 400KG-2000KG Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz Option 2: DOOYA tubular motor (CE certified) Capacities: 60N-300N Voltage/Frequency: 230V/50Hz, 120V/60Hz
Shutter Box (Hood)	Galvanized steel or aluminum (optional)
Shaft (Barrel)	Galvanized steel, sizes: 3", 5", 6", 8", 10" (size dependent on door dimensions)
Bearing	Retractable, welded according to shutter width
End Plate	Heavy duty steel, fixed on both sides of shaft
End Clip	Plastic, prevents lateral movement of curtain

Product Details

Certifications

Frequently Asked Questions

What is the delivery time?

20 days for standard colors and 30 days for customized colors. Delivery time depends on order specifications and quantity. Final shipment time varies by customer location.

What are your payment terms?

Standard terms are 30% deposit by T/T with balance paid before delivery. Alternative arrangements can be discussed.

Can we place one or two sets for trial?

Yes, trial orders are welcome. We also offer free samples (customer pays freight) for quality verification.

How can I get an exact price?

Pricing depends on specific requirements including color, size, quantity, and destination market. Please provide detailed information for an accurate quote.

Can I order components instead of full door sets?

Yes, we supply individual components such as panels, hardware, and motors for business clients.
